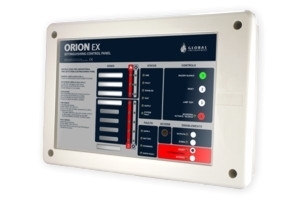

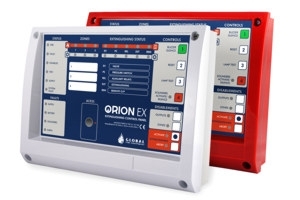

ORION EX
The ORION EX Conventional Fire Detection and Extinguishing Panel offers a creatively designed and aesthetically pleasing solution to satisfy the growing world demand for dependable Fire Suppression Systems.
The outstanding programmable features included in this panel are best suited to be installed in expensive housing areas and in general in all areas where loss of equipment can partially or totally disrupt the proper functioning of a business.
Operation is extremely intuitive, offering simple control of advanced configuration solutions.
Key Features
- 3 Fire Detection Zones.
- Up to 32 conventional smoke and/or heat detectors per Zone
- Active End of Line monitoring
- Programmable Pre-Release and Extinguishing times
- Electrovalve and Pressure Switch Status Indication
- One man test
- Supervised auxiliary 24 volt supply output
- 2 Supervised/ monitored sounder circuits
- 2 Remote inputs used for activation of Evacuation and Reset
- 2 Relay outputs fire and fault with status indication
- Fully EN 54-2, EN54-4 and EN 12094-1 compliant
